概述

Customize 工具——从插件偏好设置中访问——会更改各种 Blender 设置、偏好设置和键位映射。

注意

定制是非常个人化的。这个工具主要是我为自己准备的，用来按照自己喜欢的方式设置 Blender。 但你可以随意只选用其中的一部分。例如，你可以只选择主题或 Matcaps。

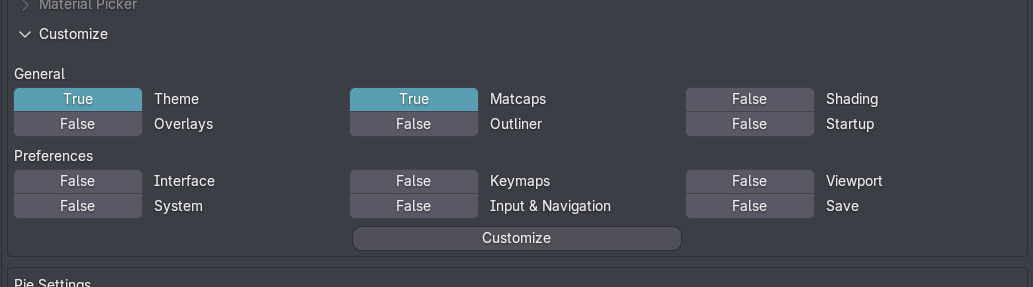

CustomizePreferences

运行时，该工具会将所做的每一项更改打印到系统控制台。
这些更改也列在下面。

主题

M3 主题融合了用于常规 UI 颜色的 Flatty Dark Blueberry，以及 Paweł Łyczkowski 的用于 3D 视图颜色的 rTheme。

Matcaps

MACHIN3tools 附带以下 4 个 Matcap。如果启用了 matcap 定制，它们将被复制到 Blender 的 matcap 文件夹中。

  • matcap_base.exr
  • matcap_shiny_red.exr
  • matcap_zebra_horizontal.exr
  • matcap_zebra_vertical.exr

着色与渲染

注意

着色更改会影响当前打开的 blend 文件/场景。
假设启动文件已打开，用户会将更改保存到启动文件中。

  • 将 shading.type 改为 SOLID
  • 将 shading.light 改为 MATCAP
  • 将 shading.color_type 改为 SINGLE
  • 将 shading.single_color 改为 838387
  • 将 shading.studio_light 改为 matcap_base.exr
  • 将 shading.studiolight_background_alpha 改为 0
  • 将 shading.studiolight_background_blur 改为 1
  • 启用 shading.show_cavity
  • 将 shading.cavity_type 改为 WORLD
  • 将 shading.cavity_ridge_factor 改为 0
  • 将 shading.cavity_valley_factor 改为 2
  • 启用 shading.show_backface_culling
  • 启用 shading.use_scene_lights
  • 启用 shading.use_scene_lights_render
  • 停用 shading.use_scene_world_render
  • 启用 Eevee Next 的 LOW 预设
  • 将渲染引擎改为 CYCLES
  • 将 Cycles 设备改为 GPU
  • 启用 cycle.use_preview_denoising
  • 将 cycles.preview_denoising_start_sample 设置为 2
  • 将 cycles.preview_denoising_input_passes 设置为 NONE
  • 启用快速 GI 近似
  • 将 cycles.ao_bounces 设置为 2
  • 将 cycles.ao_bounces_render 设置为 2

叠加层

注意

叠加层更改会影响当前打开的 blend 文件/场景。
假设启动文件已打开，用户会将更改保存到启动文件中。

  • 启用 overlay.show_face_center
  • 停用 overlay.show_relationship_lines
  • 将 overlay.vertex_opacity 改为 1
  • 停用 overlay.show_fade_inactive
  • 启用 overlay.show_face_orientation（当使用 M3 主题时）

大纲

注意

大纲更改会影响当前打开的 blend 文件/场景。
假设启动文件已打开，用户会将更改保存到启动文件中。

  • 停用 outliner.use_filter_children
  • 停用 outliner.use_filter_object_content
  • 启用 outliner.show_restrict_column_select
  • 启用 outliner.show_restrict_column_viewport
  • 启用 outliner.show_restrict_column_render

启动场景

注意

启动场景更改会影响当前打开的 blend 文件/场景。
假设启动文件已打开，用户会将更改保存到启动文件中。

  • 启用 tool_settings.use_uv_select_sync
  • 停用 overlay.show_cursor
  • 启用 scene.M3.draw_cursor_axes
  • 启用 scene.M3.draw_active_axes
  • 启用 GPU 合成
  • 移除默认灯光
  • 移除默认相机
  • 移除默认立方体
  • 移除默认集合
  • 移除默认材质
  • 将视口与世界 Y 轴对齐
  • 将标注笔触放置设置为 SURFACE
  • 将标注橡皮擦大小设置为 50

偏好设置

注意

偏好设置中的以下更改都不会自动保存。
实际上，MACHIN3tools 会刻意禁用偏好设置的自动保存。
假设用户会手动保存这些更改。

界面

  • 停用启动画面
  • 启用工具提示
  • 启用 Python 工具提示
  • 启用开发者附加功能
  • 将头部位置改为 BOTTOM（针对 3D 视图），再作为常规偏好设置改回 KEEP_EXISTING
  • 停用导航控件
  • 将颜色选择器改为 SQUARE_SV
  • 将饼状菜单动画超时改为 0
  • 启用状态栏系统内存
  • 启用状态栏显存

视口

  • 将 3D 视口轴改为 MINIMAL

输入与导航

  • 启用鼠标缩放反转
  • 启用缩放到鼠标位置
  • 将双击速度改为 200
  • 将 NDOF 死区改为 0.03
  • 停用 NDOF 缩放反转
  • 停用 NDOF 锁定相机平移/缩放
  • 将 NDOF 视图旋转方法改为转盘
  • 停用 NDOF 平移轴反转
  • 停用 NDOF 旋转轴反转
  • 停用 NDOF 锁定地平线
  • 停用 NDOF（显示）轨道中心

键位映射

Customize 工具的键位映射选项会设置为 2.7x 键位映射，然后对其进行大量修改，首先从选择开始，将使用 LEFT 鼠标键完成。

窗口键位映射

  • 停用 wm.open_mainfile, name: Open, active: True, map type: KEYBOARD, type: F1, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 停用 wm.doc_view_manual_ui_context, name: View Online Manual, active: True, map type: KEYBOARD, type: F1, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 停用 wm.open_mainfile, name: Open, active: True, map type: KEYBOARD, type: O, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 停用 wm.save_as_mainfile, name: Save As, active: True, map type: KEYBOARD, type: F2, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 停用 wm.save_as_mainfile, name: Save Copy, active: True, map type: KEYBOARD, type: S, value: PRESS, alt: 1, ctrl: 1, shift: 0, properties: {'copy': 1}
  • 停用 wm.save_as_mainfile, name: Save As, active: True, map type: KEYBOARD, type: S, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {}

屏幕键位映射

  • 将 ed.undo, name: Undo, active: True, map type: KEYBOARD, type: Z, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 ed.undo, name: Undo, active: True, map type: KEYBOARD, type: F1, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 ed.redo, name: Redo, active: True, map type: KEYBOARD, type: Z, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {}
    • 改为 ed.redo, name: Redo, active: True, map type: KEYBOARD, type: F2, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 ed.undo_history, name: Undo History, active: True, map type: KEYBOARD, type: Z, value: PRESS, alt: 1, ctrl: 1, shift: 0, properties: {}
    • 改为 ed.undo_history, name: Undo History, active: True, map type: KEYBOARD, type: F1, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 停用 screen.screen_full_area, name: Toggle Maximize Area, active: True, map type: KEYBOARD, type: UP_ARROW, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 停用 screen.screen_full_area, name: Toggle Maximize Area, active: True, map type: KEYBOARD, type: DOWN_ARROW, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 停用 screen.screen_full_area, name: Toggle Maximize Area, active: True, map type: KEYBOARD, type: SPACE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 停用 screen.screen_full_area, name: Toggle Maximize Area, active: True, map type: KEYBOARD, type: F10, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'use_hide_panels': 1}
  • 将 screen.repeat_history, name: Repeat History, active: True, map type: KEYBOARD, type: R, value: PRESS, alt: 1, ctrl: 1, shift: 0, properties: {}
    • 改为 screen.repeat_history, name: Repeat History, active: True, map type: KEYBOARD, type: R, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {}
  • 将 screen.redo_last, name: Redo Last, active: True, map type: KEYBOARD, type: F6, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 screen.redo_last, name: Redo Last, active: True, map type: MOUSE, type: BUTTON4MOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

屏幕编辑键位映射

  • 将 screen.screen_full_area, name: Toggle Maximize Area, active: True, map type: KEYBOARD, type: ACTIONZONE_FULLSCREEN, value: ANY, alt: 0, ctrl: 0, shift: 0, properties: {'use_hide_panels': 1}
    • 改为 screen.screen_full_area, name: Toggle Maximize Area, active: True, map type: KEYBOARD, type: SPACE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'use_hide_panels': 1}

用户界面键位映射

  • 将 ui.reset_default_button, name: Reset to Default Value, active: True, map type: KEYBOARD, type: BACK_SPACE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'all': 1}
    • 改为 ui.reset_default_button, name: Reset to Default Value, active: True, map type: MOUSE, type: MIDDLEMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'all': 0}

帧键位映射

  • 停用 screen.animation_play, name: Play Animation, active: True, map type: KEYBOARD, type: A, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 停用 screen.animation_play, name: Play Animation, active: True, map type: KEYBOARD, type: A, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'reverse': 1}
  • 停用 screen.animation_play, name: Play Animation, active: True, map type: KEYBOARD, type: MEDIA_PLAY, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

大纲键位映射

  • 将 outliner.show_active, name: Show Active, active: True, map type: KEYBOARD, type: PERIOD, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 outliner.show_active, name: Show Active, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 outliner.start_filter, name: Filter, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 outliner.start_filter, name: Filter, active: True, map type: KEYBOARD, type: SLASH, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

3D 视图键位映射

  • 将 view3d.cursor3d, name: Set 3D Cursor, active: True, map type: MOUSE, type: RIGHTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
    • 改为 view3d.cursor3d, name: Set 3D Cursor, active: True, map type: MOUSE, type: RIGHTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'orientation': 3}
  • 停用 transform.translate, name: Move, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 0, shift: 1, properties: {'release_confirm': 1, 'cursor_transform': 1}
  • 将 view3d.view_selected, name: Frame Selected, active: True, map type: KEYBOARD, type: NUMPAD_PERIOD, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 view3d.view_selected, name: Frame Selected, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 停用 view3d.view_axis, name: View Axis, active: True, map type: MOUSE, type: MIDDLEMOUSE, value: CLICK_DRAG, alt: 1, ctrl: 0, shift: 0, properties: {'type': 5, 'relative': 1}
  • 停用 view3d.view_axis, name: View Axis, active: True, map type: MOUSE, type: MIDDLEMOUSE, value: CLICK_DRAG, alt: 1, ctrl: 0, shift: 0, properties: {'type': 6, 'relative': 1}
  • 停用 view3d.view_axis, name: View Axis, active: True, map type: MOUSE, type: MIDDLEMOUSE, value: CLICK_DRAG, alt: 1, ctrl: 0, shift: 0, properties: {'type': 4, 'relative': 1}
  • 停用 view3d.view_axis, name: View Axis, active: True, map type: MOUSE, type: MIDDLEMOUSE, value: CLICK_DRAG, alt: 1, ctrl: 0, shift: 0, properties: {'type': 3, 'relative': 1}
  • 将 view3d.view_selected, name: Frame Selected, active: True, map type: NDOF, type: NDOF_BUTTON_FIT, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 view3d.view_center_pick, name: Center View to Mouse, active: True, map type: NDOF, type: NDOF_BUTTON_1, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 view3d.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 view3d.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 view3d.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
    • 改为 view3d.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
  • 停用 view3d.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 0, properties: {'center': 1, 'object': 1}
  • 将 view3d.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 0, properties: {'enumerate': 1}
    • 改为 view3d.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'enumerate': 1}
  • 停用 view3d.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 1, properties: {'toggle': 1, 'center': 1}
  • 停用 view3d.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 0, properties: {'center': 1, 'enumerate': 1}
  • 停用 view3d.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 1, properties: {'toggle': 1, 'enumerate': 1}
  • 停用 view3d.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 1, properties: {'toggle': 1, 'center': 1, 'enumerate': 1}
  • 停用 view3d.zoom_border, name: Zoom to Border, active: True, map type: KEYBOARD, type: B, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 停用 transform.translate, name: Move, active: True, map type: KEYBOARD, type: T, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'texture_space': 1}

物体模式键位映射

  • 将 object.select_hierarchy, name: Select Hierarchy, active: True, map type: KEYBOARD, type: LEFT_BRACKET, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'direction': 0, 'extend': 0}
    • 改为 object.select_hierarchy, name: Select Hierarchy, active: True, map type: KEYBOARD, type: UP_ARROW, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'direction': 0, 'extend': 0}
  • 将 object.select_hierarchy, name: Select Hierarchy, active: True, map type: KEYBOARD, type: RIGHT_BRACKET, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'direction': 1, 'extend': 0}
    • 改为 object.select_hierarchy, name: Select Hierarchy, active: True, map type: KEYBOARD, type: DOWN_ARROW, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'direction': 1, 'extend': 0}
  • 停用 object.delete, name: Delete, active: True, map type: KEYBOARD, type: X, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'use_global': 1}
  • 停用 object.delete, name: Delete, active: True, map type: KEYBOARD, type: DEL, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'use_global': 0, 'confirm': 0}
  • 停用 object.delete, name: Delete, active: True, map type: KEYBOARD, type: DEL, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'use_global': 1, 'confirm': 0}
  • 停用 object.move_to_collection, name: Move to Collection, active: True, map type: KEYBOARD, type: M, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 停用 object.link_to_collection, name: Link to Collection, active: True, map type: KEYBOARD, type: M, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: H, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ONE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 1, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: TWO, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 2, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: THREE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 3, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FOUR, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 4, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FIVE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 5, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SIX, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 6, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SEVEN, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 7, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: EIGHT, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 8, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: NINE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 9, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ZERO, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'collection_index': 10, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ONE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 11, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: TWO, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 12, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: THREE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 13, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FOUR, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 14, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FIVE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 15, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SIX, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 16, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SEVEN, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 17, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: EIGHT, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 18, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: NINE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 19, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ZERO, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'collection_index': 20, 'extend': 0}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ONE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 1, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: TWO, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 2, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: THREE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 3, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FOUR, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 4, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FIVE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 5, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SIX, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 6, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SEVEN, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 7, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: EIGHT, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 8, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: NINE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 9, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ZERO, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'collection_index': 10, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ONE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 11, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: TWO, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 12, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: THREE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 13, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FOUR, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 14, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: FIVE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 15, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SIX, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 16, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: SEVEN, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 17, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: EIGHT, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 18, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: NINE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 19, 'extend': 1}
  • 停用 object.hide_collection, name: Hide Collection, active: True, map type: KEYBOARD, type: ZERO, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'collection_index': 20, 'extend': 1}

物体非模态键位映射

  • 停用 object.mode_set, name: Set Object Mode, active: True, map type: KEYBOARD, type: TAB, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'mode': 1, 'toggle': 1}
  • 停用 object.mode_set, name: Set Object Mode, active: True, map type: KEYBOARD, type: TAB, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'mode': 64, 'toggle': 1}
  • 停用 object.mode_set, name: Set Object Mode, active: True, map type: KEYBOARD, type: V, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'mode': 4, 'toggle': 1}
  • 停用 object.mode_set, name: Set Object Mode, active: True, map type: KEYBOARD, type: TAB, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'mode': 8, 'toggle': 1}

图像键位映射

  • 将 image.view_selected, name: View Center, active: True, map type: KEYBOARD, type: NUMPAD_PERIOD, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 image.view_selected, name: View Center, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 停用 object.mode_set, name: Set Object Mode, active: True, map type: KEYBOARD, type: TAB, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'mode': 1, 'toggle': 1}

图像绘制键位映射

  • 将 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.image_paint.brush.size', 'data_path_secondary': 'tool_settings.unified_paint_settings.size', 'use_secondary': 'tool_settings.unified_paint_settings.use_unified_size', 'rotation_path': 'tool_settings.image_paint.brush.mask_texture_slot.angle', 'color_path': 'tool_settings.image_paint.brush.cursor_color_add', 'fill_color_path': 'tool_settings.image_paint.brush.color', 'fill_color_override_path': 'tool_settings.unified_paint_settings.color', 'fill_color_override_test_path': 'tool_settings.unified_paint_settings.use_unified_color', 'zoom_path': 'space_data.zoom', 'image_id': 'tool_settings.image_paint.brush', 'secondary_tex': 1}
    • 改为 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.image_paint.brush.size', 'data_path_secondary': 'tool_settings.unified_paint_settings.size', 'use_secondary': 'tool_settings.unified_paint_settings.use_unified_size', 'rotation_path': 'tool_settings.image_paint.brush.mask_texture_slot.angle', 'color_path': 'tool_settings.image_paint.brush.cursor_color_add', 'fill_color_path': 'tool_settings.image_paint.brush.color', 'fill_color_override_path': 'tool_settings.unified_paint_settings.color', 'fill_color_override_test_path': 'tool_settings.unified_paint_settings.use_unified_color', 'zoom_path': 'space_data.zoom', 'image_id': 'tool_settings.image_paint.brush', 'secondary_tex': 1, 'release_confirm': 1}

网格键位映射

  • 将 mesh.bevel, name: Bevel, active: True, map type: KEYBOARD, type: B, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'affect': 1}
    • 改为 mesh.bevel, name: Bevel, active: True, map type: KEYBOARD, type: B, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'affect': 1, 'offset_type': 0, 'profile': 0.6000000238418579}
  • 将 mesh.bevel, name: Bevel, active: True, map type: KEYBOARD, type: B, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {'affect': 0}
    • 改为 mesh.bevel, name: Bevel, active: True, map type: KEYBOARD, type: B, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {'affect': 1, 'offset_type': 3, 'profile': 0.6000000238418579}
  • 停用 wm.call_menu, name: Mesh Select Mode, active: True, map type: KEYBOARD, type: TAB, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'name': 'VIEW3D_MT_edit_mesh_select_mode'}
  • 停用 mesh.loop_select, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 将 mesh.loop_select, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 1, properties: {'toggle': 1}
    • 改为 mesh.loop_select, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'toggle': 1}
  • 停用 mesh.edgering_select, name: Edge Ring Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 0, properties: {}
  • 将 mesh.edgering_select, name: Edge Ring Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 1, properties: {'toggle': 1}
    • 改为 mesh.edgering_select, name: Edge Ring Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 0, properties: {'toggle': 1}
  • 将 mesh.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 0, properties: {'use_fill': 0}
    • 改为 mesh.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'use_fill': 0}
  • 将 mesh.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 1, properties: {'use_fill': 1}
    • 改为 mesh.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {'use_fill': 1}
  • 将 mesh.select_more, name: Select More, active: True, map type: KEYBOARD, type: NUMPAD_PLUS, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 mesh.select_more, name: Select More, active: True, map type: MOUSE, type: WHEELUPMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 mesh.select_less, name: Select Less, active: True, map type: KEYBOARD, type: NUMPAD_MINUS, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 mesh.select_less, name: Select Less, active: True, map type: MOUSE, type: WHEELDOWNMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 mesh.select_next_item, name: Select Next Element, active: True, map type: KEYBOARD, type: NUMPAD_PLUS, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {}
    • 改为 mesh.select_next_item, name: Select Next Element, active: True, map type: MOUSE, type: WHEELUPMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 将 mesh.select_prev_item, name: Select Previous Element, active: True, map type: KEYBOARD, type: NUMPAD_MINUS, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {}
    • 改为 mesh.select_prev_item, name: Select Previous Element, active: True, map type: MOUSE, type: WHEELDOWNMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 将 mesh.select_linked, name: Select Linked All, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 mesh.select_linked, name: Select Linked All, active: True, map type: MOUSE, type: LEFTMOUSE, value: DOUBLE_CLICK, alt: 0, ctrl: 0, shift: 1, properties: {'delimit': 14}
  • 停用 mesh.select_linked_pick, name: Select Linked, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'deselect': 0}
  • 将 mesh.select_linked_pick, name: Select Linked, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'deselect': 1}
    • 改为 mesh.select_linked_pick, name: Select Linked, active: True, map type: MOUSE, type: LEFTMOUSE, value: DOUBLE_CLICK, alt: 1, ctrl: 0, shift: 1, properties: {'deselect': 1, 'delimit': 14}
  • 停用 mesh.fill, name: Fill, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 停用 wm.call_menu, name: Merge, active: True, map type: KEYBOARD, type: M, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'name': 'VIEW3D_MT_edit_mesh_merge'}
  • 停用 wm.call_menu, name: Split, active: True, map type: KEYBOARD, type: M, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'name': 'VIEW3D_MT_edit_mesh_split'}
  • 停用 mesh.edge_face_add, name: Make Edge/Face, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 停用 object.subdivision_set, name: Subdivision Set, active: True, map type: KEYBOARD, type: ZERO, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'level': 0, 'relative': 0}
  • 停用 object.subdivision_set, name: Subdivision Set, active: True, map type: KEYBOARD, type: ONE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'level': 1, 'relative': 0}
  • 停用 object.subdivision_set, name: Subdivision Set, active: True, map type: KEYBOARD, type: TWO, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'level': 2, 'relative': 0}
  • 停用 object.subdivision_set, name: Subdivision Set, active: True, map type: KEYBOARD, type: THREE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'level': 3, 'relative': 0}
  • 停用 object.subdivision_set, name: Subdivision Set, active: True, map type: KEYBOARD, type: FOUR, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'level': 4, 'relative': 0}
  • 停用 object.subdivision_set, name: Subdivision Set, active: True, map type: KEYBOARD, type: FIVE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'level': 5, 'relative': 0}

雕刻键位映射

  • 将 paint.visibility_filter, name: Visibility Filter, active: True, map type: KEYBOARD, type: PAGE_UP, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'action': 1}
    • 改为 paint.visibility_filter, name: Visibility Filter, active: True, map type: KEYBOARD, type: PAGE_UP, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'action': 1}
  • 将 paint.visibility_filter, name: Visibility Filter, active: True, map type: KEYBOARD, type: PAGE_DOWN, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'action': 0}
    • 改为 paint.visibility_filter, name: Visibility Filter, active: True, map type: KEYBOARD, type: PAGE_DOWN, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'action': 0}
  • 将 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.sculpt.brush.size', 'data_path_secondary': 'tool_settings.unified_paint_settings.size', 'use_secondary': 'tool_settings.unified_paint_settings.use_unified_size', 'rotation_path': 'tool_settings.sculpt.brush.texture_slot.angle', 'color_path': 'tool_settings.sculpt.brush.cursor_color_add', 'fill_color_path': '', 'fill_color_override_path': '', 'fill_color_override_test_path': '', 'zoom_path': '', 'image_id': 'tool_settings.sculpt.brush', 'secondary_tex': 0}
    • 改为 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.sculpt.brush.size', 'data_path_secondary': 'tool_settings.unified_paint_settings.size', 'use_secondary': 'tool_settings.unified_paint_settings.use_unified_size', 'rotation_path': 'tool_settings.sculpt.brush.texture_slot.angle', 'color_path': 'tool_settings.sculpt.brush.cursor_color_add', 'fill_color_path': '', 'fill_color_override_path': '', 'fill_color_override_test_path': '', 'zoom_path': '', 'image_id': 'tool_settings.sculpt.brush', 'secondary_tex': 0, 'release_confirm': 1}

曲线键位映射

  • 将 curve.select_more, name: Select More, active: True, map type: KEYBOARD, type: NUMPAD_PLUS, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 curve.select_more, name: Select More, active: True, map type: MOUSE, type: WHEELUPMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 curve.select_less, name: Select Less, active: True, map type: KEYBOARD, type: NUMPAD_MINUS, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 curve.select_less, name: Select Less, active: True, map type: MOUSE, type: WHEELDOWNMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 curve.select_linked, name: Select Linked All, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 curve.select_linked, name: Select Linked All, active: True, map type: MOUSE, type: LEFTMOUSE, value: DOUBLE_CLICK, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 停用 curve.make_segment, name: Make Segment, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

UV 编辑器键位映射

  • 将 uv.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 uv.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 uv.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
    • 改为 uv.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
  • 将 uv.select_loop, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 0, properties: {}
    • 改为 uv.select_loop, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 将 uv.select_loop, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 1, properties: {'extend': 1}
    • 改为 uv.select_loop, name: Loop Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'extend': 1}
  • 将 uv.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 0, properties: {'use_fill': 0}
    • 改为 uv.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {'use_fill': 0}
  • 将 uv.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 1, properties: {'use_fill': 1}
    • 改为 uv.shortest_path_pick, name: Pick Shortest Path, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {'use_fill': 1}
  • 将 uv.select_linked, name: Select Linked, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 uv.select_linked, name: Select Linked, active: True, map type: MOUSE, type: LEFTMOUSE, value: DOUBLE_CLICK, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 停用 uv.select_linked_pick, name: Select Linked Pick, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'extend': 1, 'deselect': 0}
  • 将 uv.select_linked_pick, name: Select Linked Pick, active: True, map type: KEYBOARD, type: L, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'deselect': 1}
    • 改为 uv.select_linked_pick, name: Select Linked Pick, active: True, map type: MOUSE, type: LEFTMOUSE, value: DOUBLE_CLICK, alt: 1, ctrl: 0, shift: 1, properties: {'deselect': 1}
  • 将 uv.select_more, name: Select More, active: True, map type: KEYBOARD, type: NUMPAD_PLUS, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 uv.select_more, name: Select More, active: True, map type: MOUSE, type: WHEELUPMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 uv.select_less, name: Select Less, active: True, map type: KEYBOARD, type: NUMPAD_MINUS, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 uv.select_less, name: Select Less, active: True, map type: MOUSE, type: WHEELDOWNMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 停用 transform.translate, name: Move, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 0, shift: 0, properties: {}
  • 将 uv.cursor_set, name: Set 2D Cursor, active: True, map type: MOUSE, type: RIGHTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
    • 改为 uv.cursor_set, name: Set 2D Cursor, active: True, map type: MOUSE, type: RIGHTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 停用 transform.translate, name: Move, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 0, shift: 1, properties: {'release_confirm': 1, 'cursor_transform': 1}

节点工具：框选键位映射

  • 停用 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'deselect_all': 1, 'select_passthrough': 1}
  • 停用 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 停用 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 停用 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 1, shift: 0, properties: {}
  • 停用 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
  • 停用 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {'toggle': 1}
  • 停用 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'toggle': 1}
  • 停用 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 1, shift: 1, properties: {'toggle': 1}
  • 停用 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 0, properties: {'deselect_all': 1}

节点编辑器键位映射

  • 将 node.select, name: Select, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 0, properties: {'deselect_all': 1, 'select_passthrough': 1}
    • 改为 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'deselect_all': 1, 'select_passthrough': 1}
  • 将 node.select, name: Select, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 将 node.select, name: Select, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 0, properties: {}
    • 改为 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {}
  • 将 node.select, name: Select, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 0, properties: {}
    • 改为 node.select, name: Select, active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 1, shift: 0, properties: {}
  • 将 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
    • 改为 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'toggle': 1}
  • 将 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 0, ctrl: 1, shift: 1, properties: {'toggle': 1}
    • 改为 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 0, ctrl: 1, shift: 1, properties: {'toggle': 1}
  • 将 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 1, ctrl: 0, shift: 1, properties: {'toggle': 1}
    • 改为 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 0, shift: 1, properties: {'toggle': 1}
  • 将 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK, alt: 1, ctrl: 1, shift: 1, properties: {'toggle': 1}
    • 改为 node.select, name: Select (Toggle), active: True, map type: MOUSE, type: LEFTMOUSE, value: PRESS, alt: 1, ctrl: 1, shift: 1, properties: {'toggle': 1}
  • 将 node.add_reroute, name: Add Reroute, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 0, shift: 1, properties: {}
    • 改为 node.add_reroute, name: Add Reroute, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 node.links_cut, name: Cut Links, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 node.links_cut, name: Cut Links, active: True, map type: MOUSE, type: RIGHTMOUSE, value: CLICK_DRAG, alt: 0, ctrl: 1, shift: 0, properties: {}
  • 停用 node.link_make, name: Make Links, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'replace': 0}
  • 停用 node.link_make, name: Make Links, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {'replace': 1}
  • 将 node.view_all, name: Frame All, active: True, map type: KEYBOARD, type: HOME, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 node.view_all, name: Frame All, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 1, properties: {}
  • 将 node.view_selected, name: Frame Selected, active: True, map type: KEYBOARD, type: NUMPAD_PERIOD, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 node.view_selected, name: Frame Selected, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

文件浏览器键位映射

  • 将 file.start_filter, name: Filter, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 1, shift: 0, properties: {}
    • 改为 file.start_filter, name: Filter, active: True, map type: KEYBOARD, type: SLASH, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

文件浏览器主键位映射

  • 将 file.view_selected, name: Frame Selected, active: True, map type: KEYBOARD, type: NUMPAD_PERIOD, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}
    • 改为 file.view_selected, name: Frame Selected, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {}

变换模态映射键位映射

  • 将变换模态映射的 PROPORTIONAL_SIZE_UP 从 WHEELDOWNMOUSE 改为 WHEELUPMOUSE
  • 将变换模态映射的 PROPORTIONAL_SIZE_UP 从 WHEELUPMOUSE 改为 WHEELDOWNMOUSE
  • 将变换模态映射的 PROPORTIONAL_SIZE_UP 从 SHIFT + WHEELDOWNMOUSE 改为 SHIFT + WHEELUPMOUSE
  • 将变换模态映射的 PROPORTIONAL_SIZE_UP 从 SHIFT + WHEELUPMOUSE 改为 SHIFT + WHEELDOWNMOUSE

蜡笔编辑模式键位映射

  • 停用 grease_pencil.cyclical_set, name: Set Cyclical State, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'type': 0}
  • 停用 grease_pencil.cyclical_set, name: Set Cyclical State, active: True, map type: KEYBOARD, type: C, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'type': 2}

蜡笔雕刻模式键位映射

  • 将 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.gpencil_sculpt_paint.brush.size', 'data_path_secondary': 'tool_settings.unified_paint_settings.size', 'use_secondary': 'tool_settings.unified_paint_settings.use_unified_size', 'rotation_path': 'tool_settings.gpencil_sculpt_paint.brush.texture_slot.angle', 'color_path': 'tool_settings.gpencil_sculpt_paint.brush.cursor_color_add', 'fill_color_path': '', 'fill_color_override_path': '', 'fill_color_override_test_path': '', 'zoom_path': '', 'image_id': 'tool_settings.gpencil_sculpt_paint.brush', 'secondary_tex': 0}
    • 改为 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.gpencil_sculpt_paint.brush.size', 'data_path_secondary': 'tool_settings.unified_paint_settings.size', 'use_secondary': 'tool_settings.unified_paint_settings.use_unified_size', 'rotation_path': 'tool_settings.gpencil_sculpt_paint.brush.texture_slot.angle', 'color_path': 'tool_settings.gpencil_sculpt_paint.brush.cursor_color_add', 'fill_color_path': '', 'fill_color_override_path': '', 'fill_color_override_test_path': '', 'zoom_path': '', 'image_id': 'tool_settings.gpencil_sculpt_paint.brush', 'secondary_tex': 0, 'release_confirm': 1}

蜡笔笔刷笔触键位映射

  • 将 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.gpencil_paint.brush.size'}
    • 改为 wm.radial_control, name: Radial Control, active: True, map type: KEYBOARD, type: F, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'data_path_primary': 'tool_settings.gpencil_paint.brush.size', 'release_confirm': 1}

网格键位映射

  • 新增 mesh.loop_multi_select, name: Multi Select Loops, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK_DRAG, alt: 1, ctrl: 0, shift: 1, properties: {'ring': 0}
  • 新增 mesh.loop_multi_select, name: Multi Select Loops, active: True, map type: MOUSE, type: LEFTMOUSE, value: CLICK_DRAG, alt: 1, ctrl: 1, shift: 0, properties: {'ring': 1}
  • 新增 mesh.subdivide, name: Subdivide, active: True, map type: KEYBOARD, type: TWO, value: PRESS, alt: 1, ctrl: 0, shift: 0, properties: {'smoothness': 0.0}

工具栏弹出键位映射

  • 新增 wm.tool_set_by_id, name: Set Tool by Name, active: True, map type: KEYBOARD, type: D, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'name': 'builtin.annotate'}
  • 新增 wm.tool_set_by_id, name: Set Tool by Name, active: True, map type: KEYBOARD, type: E, value: PRESS, alt: 0, ctrl: 0, shift: 0, properties: {'name': 'builtin.annotate_eraser'}

系统

  • 将 Cycles 渲染设备改为 CUDA
  • 将撤销步数改为 64

实验性

  • 启用资源调试信息

保存与加载

  • 停用保存提示
  • 启用文件压缩
  • 停用 UI 加载
  • 将保存版本数改为 3
  • 将最近文件数改为 20
